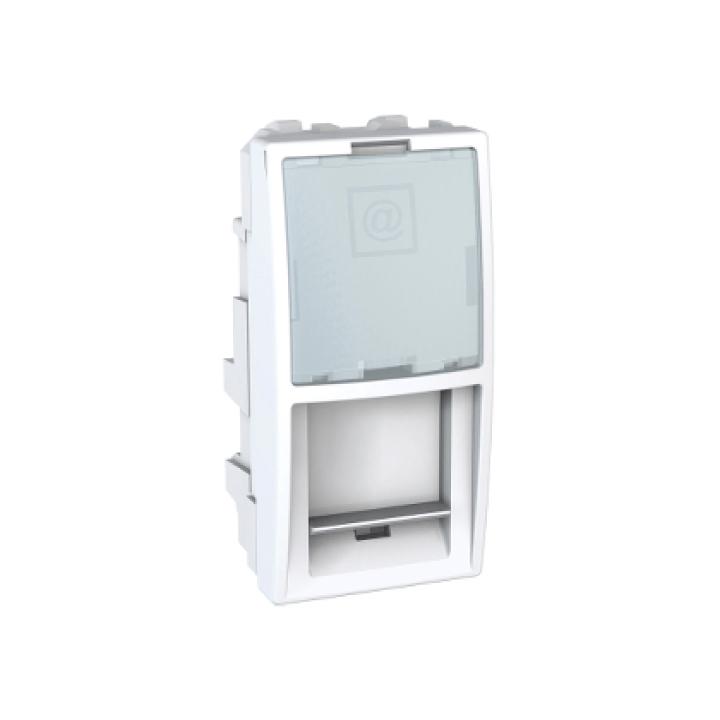

Schneider Electric 'Unica' 1 Module Cat.5e UTP RJ45 Socket in White
Schneider Electric 'Unica' 1 Module Cat.5e UTP RJ45 Socket in White
Get 5% off your total order above EGP 10,000. Use discount code ‘ summer2021 ’. Offer valid until 31 May 2021
Available:
Out of Stock
Wishlist
Compare
- Product SKU: SCH-072-MGU3.410.18
LE 94.41
LE 115.14
On an Installment of Only:
EGP 2.77 / month
$
Cash or card on delivery
Secure online payments
Secure online payments
Top Brands
100% Genuine Products
100% Genuine Products
Imagine every necessary technical function and appliance that you would wish to be available in your home. The unica range will most certainly cover every corner of those needs. And be assured, under the attractive surface, every unica product offers quality construction. So please, pay a moment of attention to our unica state of the art “outletology” chart. Make your choices, and get ready to plug and play.
Made in Denmark
| Specifications | |
|---|---|
| Device application | Communication |
| Product or component type | RJ45 connector |
| Aesthetic name | Unica (standard aesthetic) |
| Device presentation | Mechanism with central plate |
| Color tint | White (RAL 9003) |
| Data socket type | RJ45 4 contact(s) Cat.5e < 155 MHz |
| Provided equipment | Protective flap Label holder |
| Complementary | |
| Communication network type | 1000BASE-T |
| Communication port protocol | ATM 155 Mbps |
| Product destination | Duct Floor box |
| Number of modules | 1 module |
| Socket number | 1 |
| Type of footprint | Infraplus |
| Connector type | S-One |
| Cable shielding type | U/UTP |
| Organization of wire | Unshielded twisted pair |
| Connections - terminals | Click |
| Device mounting | Flush |
| Fixing mode | Clip-in By clips: shield |
| Installation direction | Straight |
| Material | ASA + PC: mechanism cover |
| Depth | 36 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Embedding depth | 25 mm |
| Environment | |
| Ambient air temperature for operation | 15…30 °C |
| Ambient air temperature for storage | 0…35 °C |
| IK degree of protection | IK01 |
| IP degree of protection | IP40 |
| Standards | ISO 8877 |
| environmental characteristic | Window-cleaning fluid Acetone Liquid soap Petrol Bleach Alcohol Oil UV resistant |
18 Months Warranty
