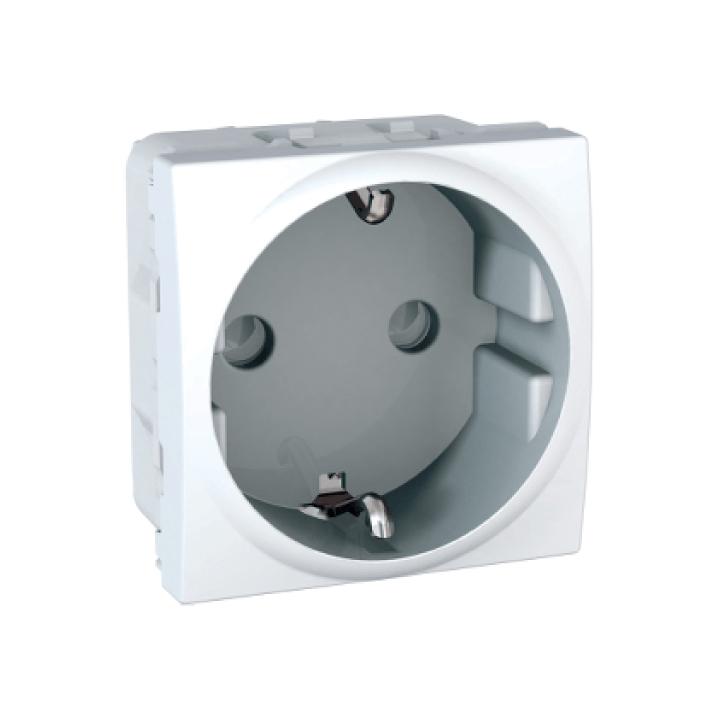

Schneider Electric 'Unica' 2Module 2P+E German DE Socket Outlet with Shutters in White
Schneider Electric 'Unica' 2Module 2P+E German DE Socket Outlet with Shutters in White
Get 5% off your total order above EGP 10,000. Use discount code ‘ summer2021 ’. Offer valid until 31 May 2021
Available:
Out of Stock
Wishlist
Compare
- Product SKU: SCH-072-MGU3.037.18
LE 47.68
LE 58.15
On an Installment of Only:
EGP 1.40 / month
$
Cash or card on delivery
Secure online payments
Secure online payments
Top Brands
100% Genuine Products
100% Genuine Products
Imagine every necessary technical function and appliance that you would wish to be available in your home. The unica range will most certainly cover every corner of those needs. And be assured, under the attractive surface, every unica product offers quality construction. So please, pay a moment of attention to our unica state of the art “outletology” chart. Make your choices, and get ready to plug and play.
Made in Spain
| Specification | |
|---|---|
| Device application | Power supply |
| Product or component type | Socket-outlet |
| Aesthetic name | Unica (standard aesthetic) |
| Device presentation | Mechanism |
| Socket number | 1 |
| Outlet poles configuration | 2P with shutters |
| Outlet standard description | Side earth |
| Outlet standard | German |
| Complementary | |
| Rated current | 16 A at 250 V AC |
| Network frequency | 50/60 Hz |
| Number of modules | 2 modules |
| Fixing mode | Clip-in |
| Color tint | White |
| Connections - terminals | Screw terminals |
| Cable cross section |
0…4 mm² - cable stiffness: flexible 0…4 mm² - cable stiffness: rigid |
| Minimum load breaking capacity | 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 |
| Electrical durability | 10000 cycles, cos phi = 0.8 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Material | ASA + PC: mechanism cover |
| Quantity per set | Set of 1 blister |
| Product certifications | 14.10.01/5433 FR.ME63.B02375 AC |
| Embedding depth | 30 mm |
| Depth | 40 mm |
| Width | 45 mm |
| Height | 45 mm |
| Net weight | 0.035 kg |
| Environment | |
| Ambient air temperature for operation | 15…30 °C |
| Ambient air temperature for storage | 0…35 °C |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Environmental characteristic | Alcohol UV resistant Bleach Liquid soap Window-cleaning fluid Acetone Petrol Oil |
| Packing Units | |
| Package 1 Weight | 37.000 g |
| Package 1 Height | 67.000 mm |
| Package 1 width | 65.000 mm |
| Package 1 Length | 44.000 mm |
| Offer Sustainability | |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | Product out of China RoHS scope. Substance declaration for your information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
18 Months Warranty
