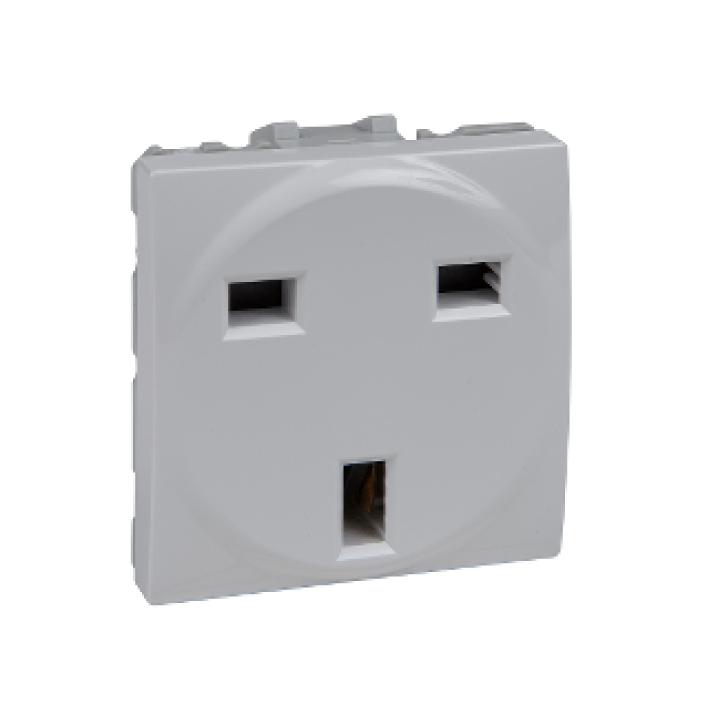

Schneider Electric Unica 2 Module 2P+E UK Socket Outlet with Shutters in White

Get 5% off your total order above EGP 10,000. Use discount code ‘ summer2021 ’. Offer valid until 31 May 2021

Available: Out of Stock

Wishlist Compare

LE 98.15 ~~LE 119.70~~

On an Installment of Only:

EGP 2.88 / month

Free Delivery to Greater Cairo
14 Day Free Returns

Cash or card on delivery
Secure online payments

Top Brands
100% Genuine Products

Schneider electric unica 2 module 2p+e UK socket outlet with shutters in white

Made in EU

Specifications
Range	Unica
Device application	Power supply
Product or component type	Socket-outlet
Aesthetic name	Unica (standard aesthetic)
Device presentation	Mechanism
Socket number	1
Outlet poles configuration	2P + E with shutters
Outlet standard	British
Outlet standard description	Displaced earth
Complementary
Rated current 13 A at 250 V AC	13 A at 250 V AC
Network frequency	50/60 Hz
Number of modules	2 modules
Fixing mode	Clip-in
Colour tint Ivory	White
Connections - terminals	Screw terminals
Cable cross section	0…4 mm² - cable stiffness:flexible 0…4 mm² - cable stiffness: rigid
Minimum load breaking capacity	100 operations 1.25 In and 1.1 Un, cos phi = 0.6
Electrical durability	10000 cycles,cos phi = 0.8
Insulation resistance	> 5 MOhm at 500 V
Dielectric strength	2000 V
Material	ASA + PC: mechanism cover
Quantity per set	Set of 1 blister
Embedding depth	30 mm
Depth	33 mm
Width	45 mm
Height	45 mm
Net weight	0.0389 kg
Environment
Ambient air temperature for operation	15…30 °C
Ambient air temperature for storage	0…35 °C
IK degree of protection	IK01
IP degree of protection IP20	IP20
Environmental characteristic	Oil UV resistant Bleach Petrol Acetone Liquid soap Window-cleaning fluid Alcohol
Environmental health and issues	Halogen free

18 Months Warranty
