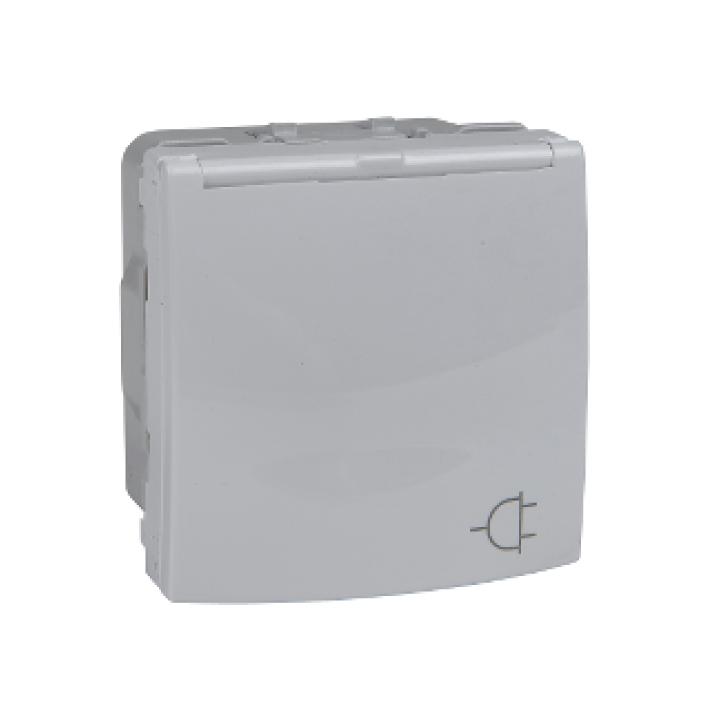

Schneider Electric 'Unica' 2 Module 2P+E German DE Socket Outlet with Shutters and Lid in White
Schneider Electric 'Unica' 2 Module 2P+E German DE Socket Outlet with Shutters and Lid in White
Get 5% off your total order above EGP 10,000. Use discount code ‘ summer2021 ’. Offer valid until 31 May 2021
Available:
Out of Stock
Wishlist
Compare
- Product SKU: SCH-072-MGU3.037.18TA
LE 52.36
LE 63.85
On an Installment of Only:
EGP 1.54 / month
$
Cash or card on delivery
Secure online payments
Secure online payments
Top Brands
100% Genuine Products
100% Genuine Products
Schneider electric unica 2module 2p+e german de socket outlet with shutters and lid in white
Made in EU
| Specifications | |
|---|---|
| Range | Unica |
| Device application | Power supply |
| Product or component type | Socket-outlet |
| Aesthetic name | Unica (standard aesthetic) |
| Device presentation | Mechanism |
| Socket number | 1 |
| Outlet poles configuration | 2P + E with shutters |
| Outlet standard | German |
| Outlet standard description | Side earth |
| Complementary | |
| Cover type | Hinged cover |
| Rated current | 16 A at 250 V AC |
| Network frequency | 50/60 Hz |
| Number of modules | 2 modules |
| Fixing mode | Clip-in |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screw terminals |
| Cable cross section | 0…4 mm² - cable stiffness: flexible 0…4 mm² - cable stiffness: rigid |
| Minimum load breaking capacity | 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 |
| Electrical durability | 10000 cycles, cos phi = 0.8 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Material | ASA + PC: mechanism cover |
| Surface finish Brilliant | Brilliant |
| Quantity per set | Set of 1 blister |
| Product certifications | FR.ME63.B02375 AC 14.10.01/5433 |
| Embedding depth | 30 mm |
| Depth | 40 mm |
| Width | 45 mm |
| Height | 45 mm |
| Net weight | 0.0408 kg |
| Surface treatment | Untreated |
| Environment | |
| Ambient air temperature for operation | 15…30 °C |
| Ambient air temperature for storage | 0…35 °C |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Environmental characteristic | Liquid soap Window-cleaning fluid Bleach Oil UV resistant Petrol Alcohol Acetone |
| Environmental health and issues | Halogen free |
18 Months Warranty
