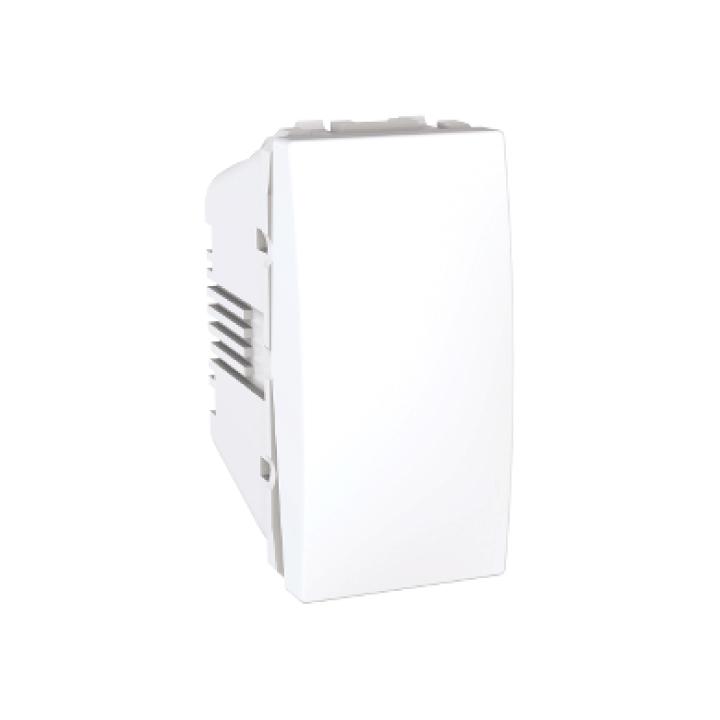

Schneider Electric 'Unica' 10 A 250 VAC 1-Way Push Button with 1 Module in White
Schneider Electric 'Unica' 10 A 250 VAC 1-Way Push Button with 1 Module in White
Get 5% off your total order above EGP 10,000. Use discount code ‘ summer2021 ’. Offer valid until 31 May 2021
Available:
Out of Stock
Wishlist
Compare
- Product SKU: SCH-072-MGU3.106T.18
LE 41.07
LE 50.08
On an Installment of Only:
EGP 1.21 / month
$
Cash or card on delivery
Secure online payments
Secure online payments
Top Brands
100% Genuine Products
100% Genuine Products
| Range of product | Unica |
|---|---|
| aesthetic name | Unica (standard aesthetic) |
| product or component type | Switch |
| device presentation | Mechanism |
| switch function | 1-pole 1-way |
| device application | Control |
| colour tint | White |
Â
Mainly Made in EU
Â
| Complementary | |
|---|---|
| rated current | 10 A at 250 V AC 50/60 Hz |
| electrical durability | 40000 cycles, cos phi = 0.6 |
| insulation resistance | > 5 MOhm at 500 V |
| dielectric strength | 2000 V |
| minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| condition of use | Impulse relay control |
| opening distance | > 3 mm |
| actuator | Push-button |
| number of modules | 1 module |
| connections - terminals | Screw terminals |
| cable cross section | 0…2.5 mm² rigid cable 0…2.5 mm² flexible cable |
| material | ASA + PC: mechanism cover ABS (acrylonitrile butadiene-styrene): mechanism cover |
| fixing mode | Clip-in |
| width | 22.5 mm |
| height | 45 mm |
| depth | 33 mm |
| embedding depth | 21 mm |
| net weight | 0.0194 kg |
| ambient air temperature for operation | 25…35 °C |
| ambient air temperature for storage | 0…50 °C |
| standards | LV directive EN 60669-1 EMC directive |
| Environment | |
| IP degree of protection | IP20 |
| IK degree of protection | IK01 |
| environmental characteristic | Petrol Bleach Liquid soap Oil Acetone UV resistant Ammonia Window-cleaning fluid Alcohol |
| environmental health and issues | Halogen free |
