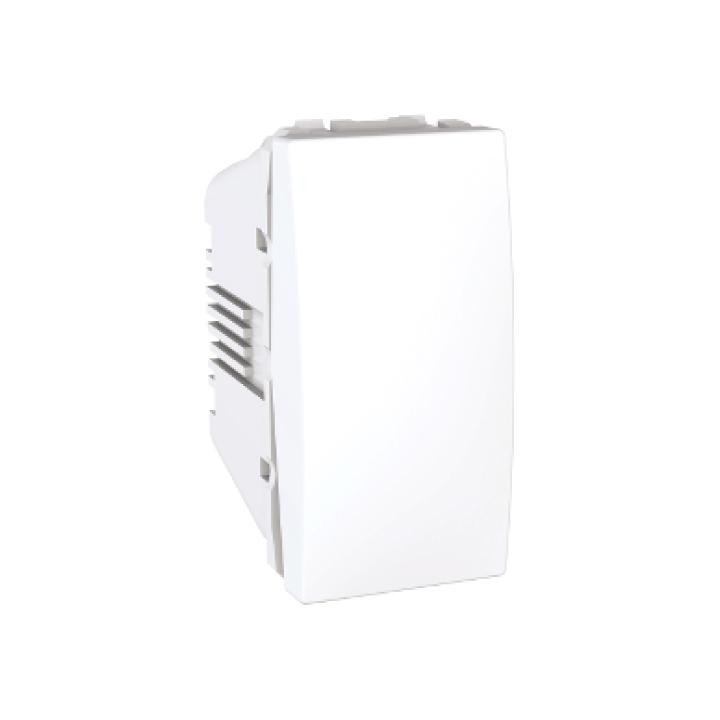

Schneider electric 'unica' 10 AX 250 VAC 1 way rocker switch with 1 module in white

Made in EU

Specifications
Range of product	Unica
Aesthetic name	Unica (standard aesthetic)
Product or component type	Switch
Device presentation	Mechanism
Switch function	1-pole 1-way
Device application	Control
Provided equipment	Internal power connection
Colour tint	White
Complementary
Rated current	10 AX at 250 V AC 50/60 Hz
Electrical durability	10000 cycles
Insulation resistance	> 5 MOhm at 500 V
Dielectric strength	2000 V
Minimum load breaking capacity	200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Opening distance	> 3 mm
Actuator	Rocker
Number of modules	1 module
Connections - terminals	Screw terminals
Cable cross section	0…2.5 mm² rigid cable 0…2.5 mm² flexible cable
Material	ASA + PC: mechanism cover
Fixing mode	Clip-in
Width	22.5 mm
Height	45 mm
Depth	34 mm
Embedding depth	22 mm
Net weight	0.019 kg
Ambient air temperature for operation	25…35 °C
Ambient air temperature for storage	0…50 °C
Standards	LV directive EN 60669-1 EMC directive
Environment
IK degree of protection	IK01
IP degree of protection	IP20
Environmental characteristic	Oil Liquid soap Alcohol Petrol Bleach Window-cleaning fluid Acetone UV resistant
Environmental health and issues	Halogen free

18 Months Warranty
