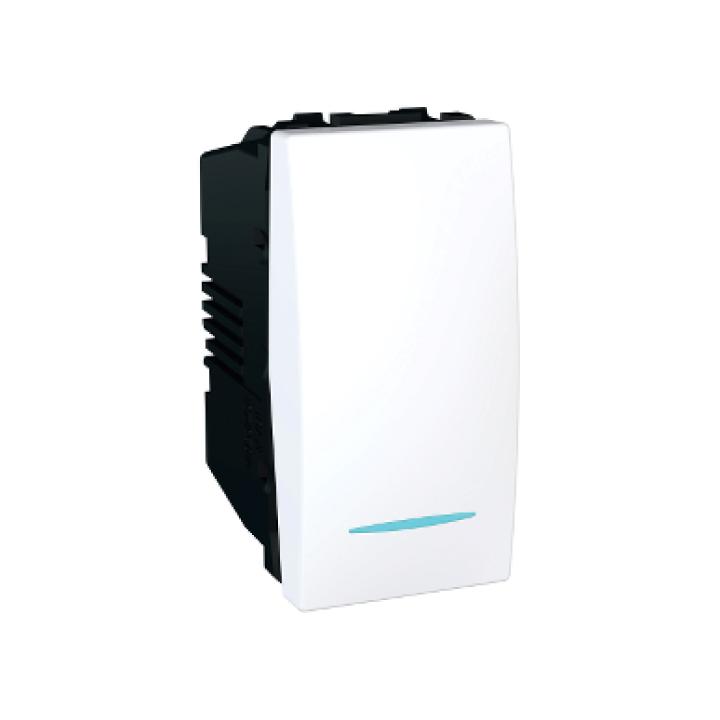

Schneider Electric 'Unica' 16AX 250 VAC 1 Way Rocker Switch 1 Module with Indicator in White

Get 5% off your total order above EGP 10,000. Use discount code ‘ summer2021 ’. Offer valid until 31 May 2021

Available: Out of Stock

Wishlist Compare

LE 68.43 ~~LE 83.45~~

On an Installment of Only:

EGP 2.01 / month

Free Delivery to Greater Cairo
14 Day Free Returns

Cash or card on delivery
Secure online payments

Top Brands
100% Genuine Products

Schneider electric unica 16AX 250 VAC 1 way rocker switch 1 module with indicator in white

Made in EU

Specifications
Range of product	Unica
Aesthetic name	Unica (standard aesthetic)
Product or component type	Switch
Device presentation	Mechanism
Switch function	1-pole 1-way
Device application	Control
Colour tint	White
Complementary
Rated current	16 AX at 250 V AC 50/60 Hz
Electrical durability	5000 cycles
Insulation resistance	> 5 MOhm at 500 V
Dielectric strength	2000 V
Minimum load breaking capacity	200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Opening distance	> 3 mm
Actuator	Rocker
Number of modules	1 module
Pilot light	LED, colour: blue, current consumption: 0.15 mA, temperature rise: 15 °C
Connections - terminals	Screw terminals
Cable cross section	0…4 mm² rigid cable 0…4 mm² flexible cable
Material	ASA + PC: mechanism cover
Fixing mode	Clip-in
Width	22.5 mm
Height	45 mm
Depth	33 mm
Embedding depth	21 mm
Net weight	0.0239 kg
Ambient air temperature for operation	25…35 °C
Ambient air temperature for storage	0…50 °C
Standards	EN 60669-1 LV directive EMC directive
Environment
IP degree of protection	IP20
IK degree of protection	IK01
Environmental characteristic	Acetone Oil Liquid soap Window-cleaning fluid Bleach Petrol Alcohol UV resistant
Environmental health and issues	Halogen free

18 Months Warranty

Description
