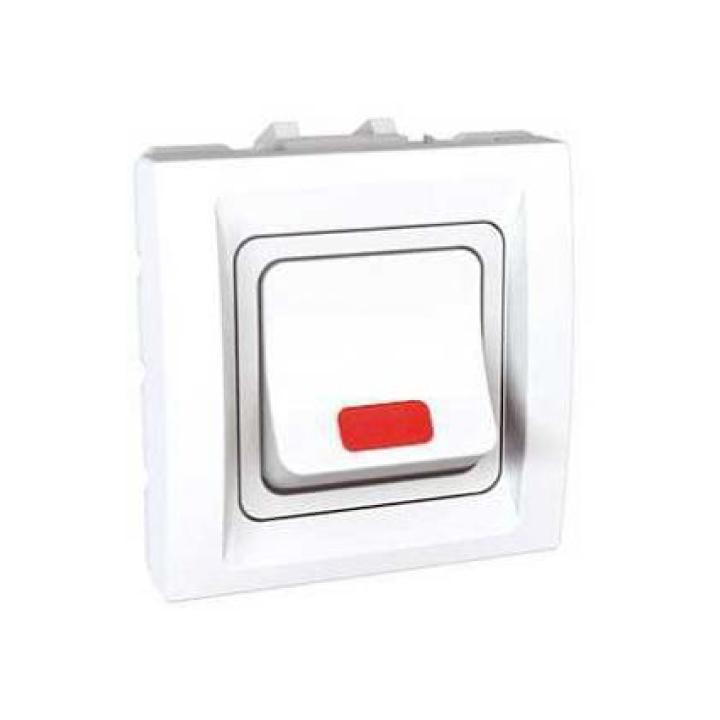

Schneider Electric 'Unica' 32A 250 VAC 1 Way Rocker Switch with 2 Modules in White

Get 5% off your total order above EGP 10,000. Use discount code ‘ summer2021 ’. Offer valid until 31 May 2021

Available: Out of Stock

Wishlist Compare

LE 103.76 ~~LE 126.54~~

On an Installment of Only:

EGP 3.05 / month

Free Delivery to Greater Cairo
14 Day Free Returns

Cash or card on delivery
Secure online payments

Top Brands
100% Genuine Products

Schneider electric unica 32A 250 VAC 1 way rocker switch with 2 modules in white

Made in Malaysia

Specifications
Range of product	Unica
Aesthetic name	Unica (standard aesthetic)
Product or component type	Switch
Device presentation	Mechanism
Switch function	1-pole 1-way
Device application	Control
Colour tint	White
Complementary
Rated current	32 A at 250 V AC 50/60 Hz
Electrical durability	10000 cycles, cos phi = 0.6
Insulation resistance	> 5 MOhm at 500 V
Dielectric strength	2000 V
Minimum load breaking capacity	200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Opening distance	> 3 mm
Actuator	Rocker
Number of modules	2 modules
Pilot light	Neon indicator lamp, color: amber, current consumption: 1 mA, temperature rise: 15 °C
Connections - terminals	Screw terminals
Cable cross section	0…6 mm² rigid cable 0…6 mm² flexible cable
Material	ASA + PC: mechanism cover ABS (acrylonitrile butadiene-styrene): mechanism cover
Fixing mode	Clip-in
Width	45 mm
Height	45 mm
Depth	32 mm
Net weight	0.039 kg
Ambient air temperature for operation	25…35 °C
Ambient air temperature for storage	0…50 °C
Standards	LV directive EN 60669-1 EMC directive
Environment
IP degree of protection	IP20
IK degree of protection	IK01
Environmental characteristic	Oil Acetone Petrol Alcohol UV resistant Window-cleaning fluid Liquid soap Bleach
Environmental health and issues	Halogen free

18 Months Warranty
