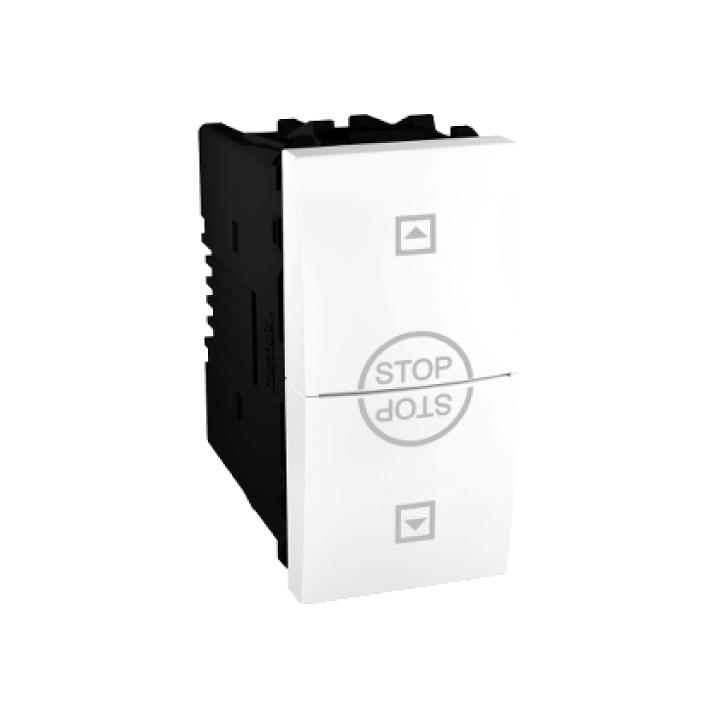

Schneider Electric 'Unica' 10A 250 VAC Rocker Switch with 1 Module in White
Schneider Electric 'Unica' 10A 250 VAC Rocker Switch with 1 Module in White
Get 5% off your total order above EGP 10,000. Use discount code ‘ summer2021 ’. Offer valid until 31 May 2021
Available:
Out of Stock
Wishlist
Compare
- Product SKU: SCH-072-MGU3.108T.18
LE 88.45
LE 107.87
On an Installment of Only:
EGP 2.60 / month
$
Cash or card on delivery
Secure online payments
Secure online payments
Top Brands
100% Genuine Products
100% Genuine Products
Schneider electric unica 10A 250 VAC rocker switch with 1 module in white
Made in EU
| Specfications | |
|---|---|
| Range | Unica |
| Device application | Control |
| Product or component type | Switch |
| Aesthetic name | Unica (standard aesthetic) |
| Device presentation | Mechanism |
| Switch function | 2-way |
| Switch application | Roller blind |
| Rated current | 10 A at 250 V AC 50/60 Hz |
| Actuator | Rocker |
| Number of modules | 1 module |
| Fixing mode | Clip-in |
| Cover plate colour tint | White |
| Complementary | |
| Contacts type and composition | 1 C/O |
| Mechanical interlocking | Interlock between up/down |
| [Iu] rated interrupted current | 2.5 A for motor |
| Opening distance | > 3 mm |
| Marking |
Down UP |
| Connections - terminals | Screw terminals |
| Cable cross section | 2.5 mm² flexible cable 2.5 mm² rigid cable |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Electrical durability | 10000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Material | ASA + PC: mechanism cover |
| Standards |
EN 60669-1 EMC directive LV directive |
| Ambient air temperature for operation | 25…35 °C |
| Ambient air temperature for storage | 0…50 °C |
| Embedding depth | 21 mm |
| Depth | 33 mm |
| Width | 22.4 mm |
| Height | 45 mm |
| Environment | |
| IP degree of protection | IP20 |
| IK degree of protection | IK01 |
| Environmental characteristic | Window-cleaning fluid Liquid soap Acetone UV resistant Oil Bleach Petrol Alcohol |
| Environmental health and issues | Halogen free |
18 Months Warranty
