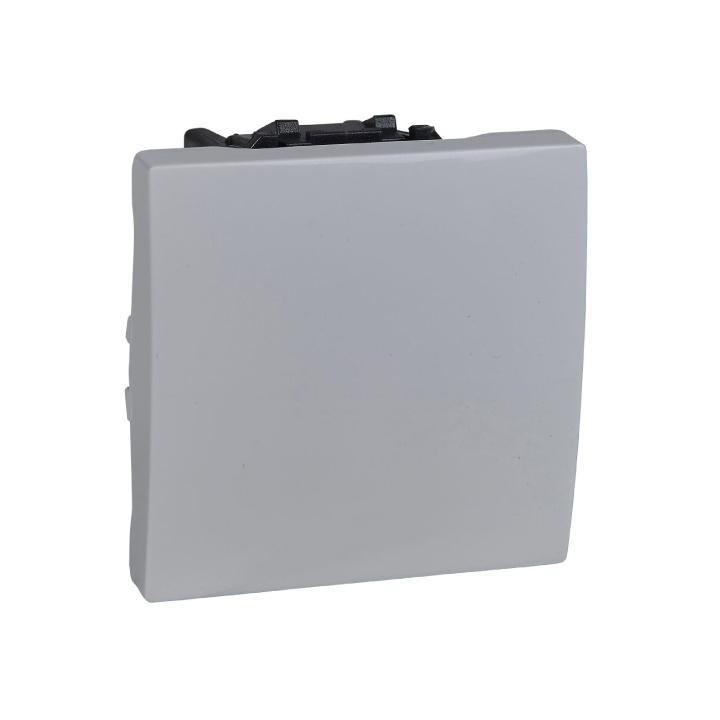

Schneider Electric 'Unica' 16 AX 250 VAC 2-Way Rocker Switch with 2 Modules in White
Schneider Electric 'Unica' 16 AX 250 VAC 2-Way Rocker Switch with 2 Modules in White
Get 5% off your total order above EGP 10,000. Use discount code ‘ summer2021 ’. Offer valid until 31 May 2021
Available:
Out of Stock
Wishlist
Compare
- Product SKU: SCH-072-MGU3.263.18
LE 52.69
LE 64.26
On an Installment of Only:
EGP 1.55 / month
$
Cash or card on delivery
Secure online payments
Secure online payments
Top Brands
100% Genuine Products
100% Genuine Products
| Range of product | Unica |
|---|---|
| aesthetic name | Unica (standard aesthetic) |
| product or component type | Switch |
| device presentation | Mechanism |
| switch function | 1-pole 2-way |
| device application | Control |
| colour tint | White |
Made in EU
Technical Information
| Complementary | |
|---|---|
| rated current | 16 AX at 250 V AC 50/60 Hz |
| electrical durability | 5000 cycles |
| insulation resistance | > 5 MOhm at 500 V |
| dielectric strength | 2000 V |
| minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| opening distance | > 3 mm |
| actuator | Rocker |
| number of modules | 2 modules |
| connections - terminals | Screw terminals |
| cable cross section |
0…4 mm² rigid cable 0…4 mm² flexible cable |
| material | ASA + PC: mechanism cover |
| fixing mode | Clip-in |
| width | 45 mm |
| height | 45 mm |
| depth | 33 mm |
| embedding depth | 21 mm |
| net weight | 0.0248 kg |
| ambient air temperature for operation | 25…35 °C |
| ambient air temperature for storage | 0…50 °C |
| standards |
LV directive EN 60669-1 EMC directive |
| standards |
EMC directive EN 60669-1 LV directive |
| Environment | |
| IP degree of protection | IP20 |
| IK degree of protection | IK01 |
| environmental characteristic |
Window-cleaning fluid Liquid soap Alcohol Bleach Petrol UV resistant Oil Acetone Ammonia |
| environmental health and issues | Halogen free |
