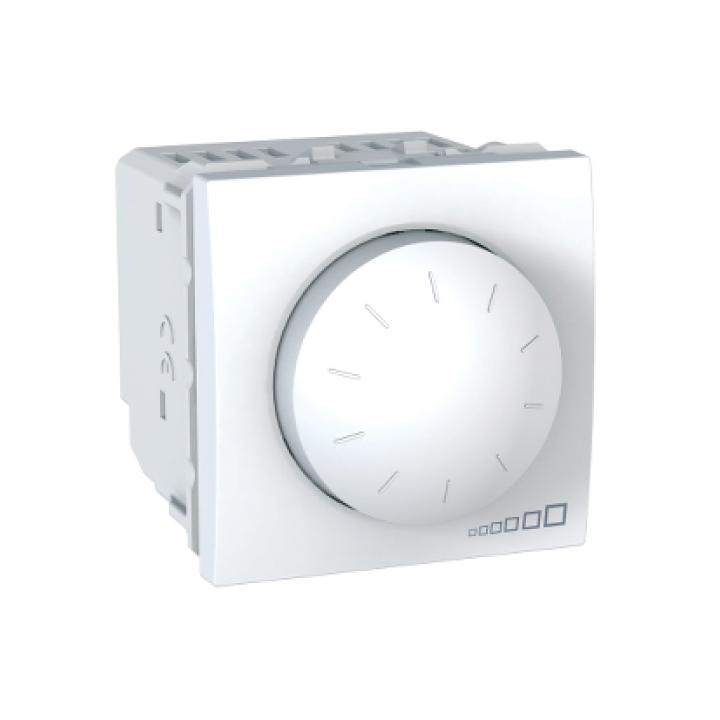

Schneider Electric 'Unica' 230 VAC 40 to 400 W/VA Rotary Dimmer in White

Get 5% off your total order above EGP 10,000. Use discount code ‘ summer2021 ’. Offer valid until 31 May 2021

Available: Out of Stock

Wishlist Compare

LE 329.98 ~~LE 402.42~~

On an Installment of Only:

EGP 9.69 / month

Free Delivery to Greater Cairo
14 Day Free Returns

Cash or card on delivery
Secure online payments

Top Brands
100% Genuine Products

aesthetic name	Unica (standard aesthetic)
product or component type	Rotary dimmer
device presentation	Mechanism
fixing mode	Clip-in
dimmer application	Resistive load Inductive load
[Ue] rated operational voltage	230 V AC 50 Hz
number of modules	2 modules
cover plate colour tint	White

Made In Latvia

Complementary
dimmer control	270Â° rotary setting ON/OFF push
maximum permanent current	1.74 A
total number of wires	2
load type	230 V AC halogen lamp - 40...400 W 230 V AC incandescent lamp - 40...400 W Low voltage halogen lamp with ferromagnetic transformer - 40...400 VA
protection type	Fuse protection
fuse type	4 Ah 5 x 20 mm 230 V 50 Hz
marking	L+N
connections - terminals	Screw terminals
clamping connection capacity	<= 2 x 2.5 mmÂ²
connected auxiliaries	2-way switch
material	ASA + PC: mechanism cover
standards	EN 60669-2-1
product certifications	CE
ambient air temperature for operation	5â€¦30 Â°C
ambient air temperature for storage	-20â€¦60 Â°C
embedding depth	34 mm
depth	54 mm
width	45 mm
height	45 mm
net weight	0.071 kg
Environment
IK degree of protection	IK01
IP degree of protection	IP20
environmental characteristic	Acetone Liquid soap Petrol UV resistant Oil Alcohol Bleach Window-cleaning fluid Ammonia
environmental health and issues	Halogen free
