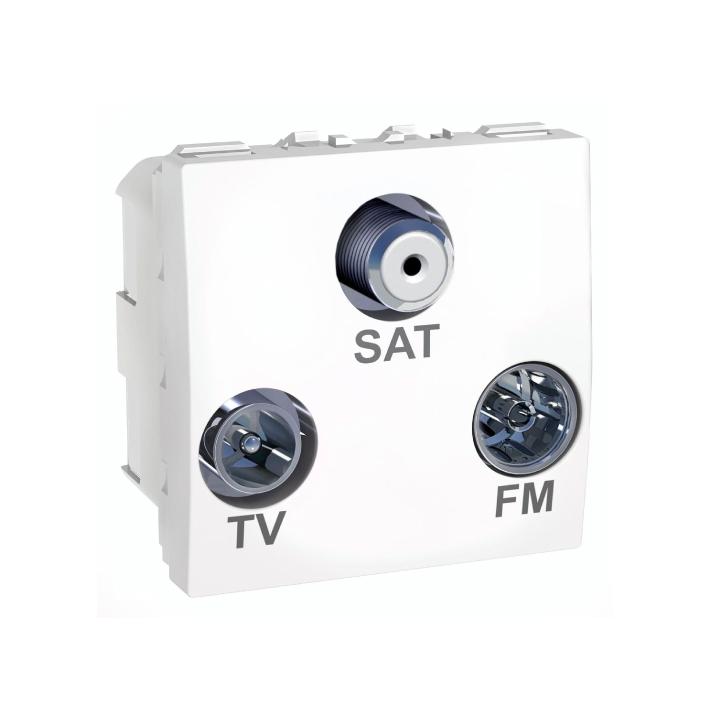

Schneider Electric Unica TV/FM/SAT Individual Socket in White
Made in China
| Specfications | |
|---|---|
| Range | Unica |
| Aesthetic name | Unica (standard aesthetic) |
| Product or component type | TV/FM/SAT socket |
| Device application | Media device support |
| Device presentation | Mechanism |
| TV socket type | TV/FM/SAT |
| Colour tint | White (RAL 9003) |
| Complementary | |
| TV connector | Male IEC 9.52 mm |
| Radio connector | Female IEC 9.52 mm |
| SAT connector | F type |
| Path attenuation | 3 dB TV signal125…862MHz 2 dB R signal5…108 MHz 3 dB SAT signal950…2400 MHz |
| DC current flow | In SAT socket |
| Number of modules | 2 modules |
| Material | Zinc alloy: insert PBT (polybutylene terephthalate) GF30: support frame Thermoplastic ABS-UV stabilised: centre plate |
| Surface treatment | Untreated |
| Surface finish | Brilliant |
| Marking | With imprint |
| Device mounting | Flush |
| Fixing mode | Clip-in |
| Depth | 35 mm |
| Width | 74.9 mm |
| Height | 74.9 mm |
| Embedding depth | 20 mm |
| Net weight | 0.088 kg |
| Environment | |
| IP degree of protection | IP20 |
| IK degree of protection | IK02 |
| Ambient air temperature for operation | 5…45 °C |
| Ambient air temperature for storage | -5…50 °C |
| Environmental characteristic | Bleach Acetone Window-cleaning fluid Alcohol Liquid soap Oil Petrol UV resistant |
| Environmental health and issues | Halogen free |
| Standards | EN 50083 |
