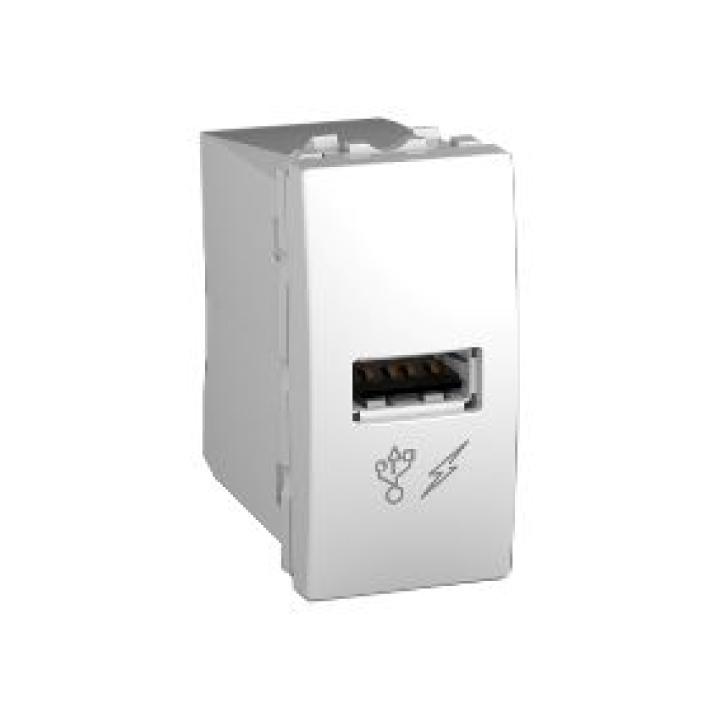

Schneider Electric 'Unica' USB Charger in White
$
Cash or card on delivery
Secure online payments
Secure online payments
Top Brands
100% Genuine Products
100% Genuine Products
Schneider electric unica usb charger in white
Made in Itlay
| Specifications | |
|---|---|
| Range | Unica |
| Product or component type | USB charger |
| Device presentation | Mechanism |
| Complementary | |
| Device application | Charger |
| Device mounting |
Flush |
| Colour tint | White |
| Connector type | USB 2.0 |
| [Ue] rated operational voltage | 100...240 V AC 50/60 Hz |
| Maximum power consumption in W | 0.1 W |
| Input power | 7.5 W |
| Socket number | 1 |
| Integrated connection type | 1 USB 2.0 port 5 V DC, maximum load current: 1 A |
| Material |
ABS (acrylonitrile butadiene-styrene): centre plate PC (polycarbonate) GF10 FR: casing PC (polycarbonate) GF10 FR: internal cover |
| Protection type | Short-circuit protection |
| Number of terminals | 2 screw terminals |
| Shape of screw head | Pozidriv No 1 |
| Clamping connection capacity |
1.5...2.5 mm² for rigid cable(s) 1.5...2.5 mm² for flexible cable(s) 1.5...2.5 mm² for stranded cable(s) |
| Wire stripping length | 8 mm |
| Product compatibility | All devices fulfilling the EN 62684 standard |
| Fixing mode | Screws or claws |
| Type of packing | Flow-pack |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…50 °C |
| Standards |
2004/108/EC EN 62684 ETSI EN 301 489-4 EN 60950-1 2006/95/EC EU directive 2002/95/EC |
| Height | 45 mm |
| Width | 22.5 mm |
| Depth | 42 mm |
| Embedding depth | 30.8 mm |
| Net weight | 0.03 kg |
| Environment | |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Electrical insulation class | Class II |
